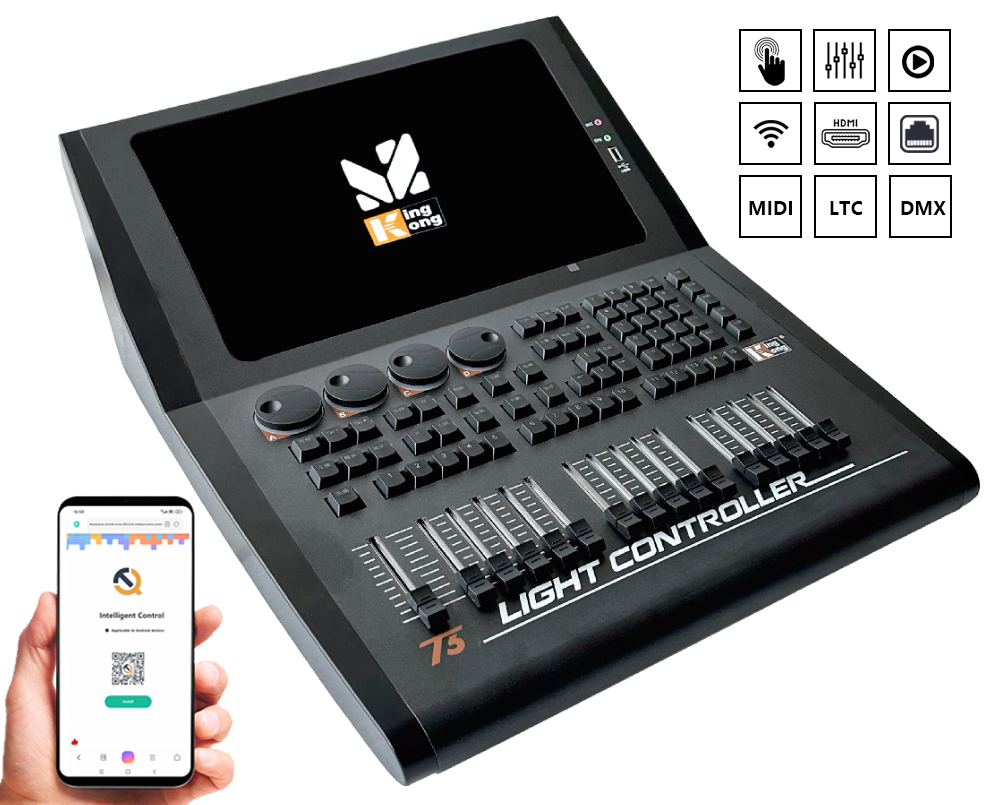

KINGKONG Console T3 Touchscreen Light Controller Stage Lighting Controller DMX Controller
T31. The operating system is based on the customized development of Linux Ubuntu desktop application, and the system is more stable and does not have viruses. It supports language switching such as English, Portuguese, Vietnamese.Also can customized language.
2. The motherboard uses industrial-grade materials, integrated welding of memory /cpu/ hard disk and motherboard, with high stability
3. With 4G running memory, 4-core CPU processor, 15.6 "HD touch capacitive screen

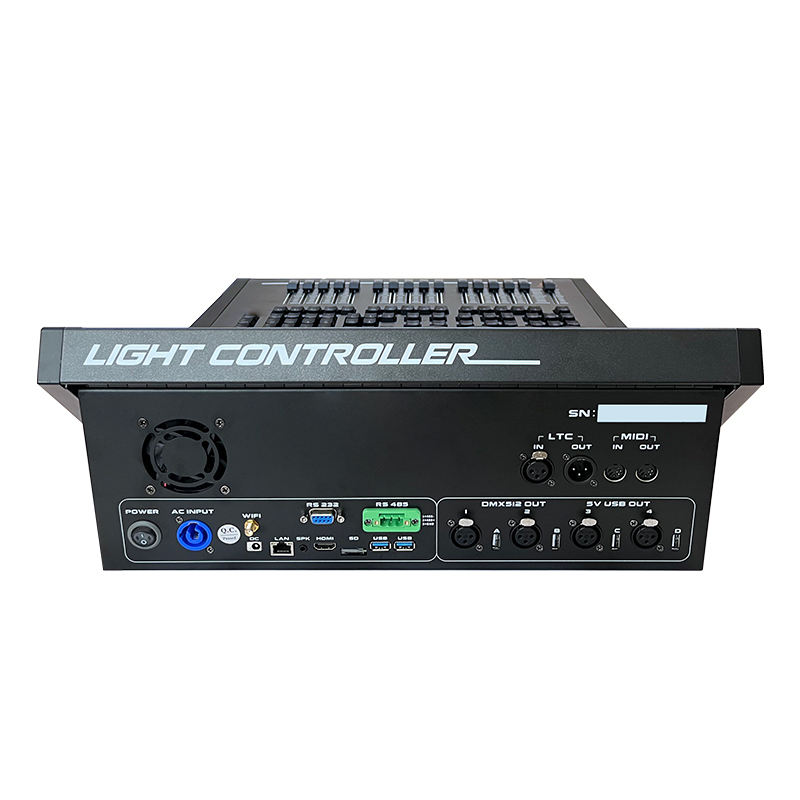

4.With four DMX512 photoelectric isolation output, the implementation of DMX512/1990 standard, physical fixed output 2048 DMX512 control channels.It can be extended to 8 output outlets using ART-NET, a total of 4096 DMX512 channels.
5. All the fader rails on the console are smooth, stable, with damping, accurate data, no delay, no jump value
6. The hardware is all new and original.
7.With 6 USB ports, Four of the powered USB ports can be used for WIFI transmitter use, two of which can be inserted USB flash drives to read or store console data
8.With four encoder dial wheel, adjustable lamp attributes
9.With one HD HDMI ports, support HD screen expansion
10.With one SD storage ports for storage expansion
11.With one 100 megabit network port, support TPC/IP protocol high-speed transmission, can be connected to various control systems, support UDP, TCP, 485 and other control code trigger control, support connection lighting simulator software real-time output, can also be used for practice and simulation programming
12. Equipped with WIFI receiver, can be used for WIFI connection
13. There are 10 scene fader, which can run 80 playback at the same time, and 1 blackout fader, which supports immediate blackout
14. Support dual console online control function.If one controller failure, the other controller can control without any delay.
15. Support wireless or wired control function, mobile phone or tablet software and wall panel remote control
16. The APP function can classify and sort the edited scenes and programs, and display them directly on the mobile phone according to the control process, which is easy to use on the spot
17. Can set screen password and boot password which can protect console data well
18. Support RDM remote identification fixtures or change the address code function
19. Vector bitmap function, simulate the field layout emission, promote the control of lamps more accurate and convenient
20.Palettes can be classified, which can easily improve efficiency
21. Shape grouping with more programming effects, can import and export project files
22. With 6 fan modes, the fan effect can be modified through the Tips dialog box
23. Special dialog box, you can quickly call the color through the color board
24. Paragraph operation method, can be used for attributes, time, graphics, etc., at will
25. Fixture groups, palettes, scenes, etc., can be customized named or graffiti, easy to find and call
26. One-click light show, built-in music player, easy to edit show and performance rehearsal records
27. Using the XML format light library.The light library editor is simple to operate, and can be written directly on the console or written on the computer and copied into the console
28. Can store 2700 scenes, including multi-step scenes unlimited number of steps
29. The fixture group is divided into 3 categories, which can store 300 fixture groups and control 1600 fixtures
30. Palettes are divided into 10 categories, with a total storage capacity of 1,000 materials
31. Built-in 190 commonly used fixed shapes and 31 kinds of curve effects, which can be modified by parameters
32. Can store 200 programs, can edit the light show
33. Can load 60 shape effects at the same time, arbitrary combination
34. The lamp library can add segment sets and quickly select attribute features
35. After connecting the lamp, you can directly change the address code and line and change the position of the lamp key
36. Console all performance files, light library, music, graphics files can be backed up external U disk, in order to prevent file loss
37. Can customize the lamp picture of each lamp position, convenient and intuitive display of lamp information
38. Support timing to trigger the operation and stop of programs and scenes, support console customization startup and shutdown,
39. Automatically generate light show music waveform diagram function. It can mark the card points directly on the console according to the rhythm of the music waveform diagram. And the recorded light scene on the mark left and right adsorption.So that light show editing more convenient and efficient
40. Light show fill mode. After marking the light show music card points, use fill mode to quickly and automatically fill the edited scene directly between the marks. Greatly reduces the difficulty and time of light show editing
41. Cursor timeline function. It can display the music duration of the light show in detail, the running time of the light scene, the card point marking time point and so on. Realize the lighting scene accurate card point trigger and end, so that the light show sound and light synchronization is more accurate
42. The action bar of the lighting scene can be directly dragged to adjust the position and running time, and automatically adsorbed to the mark point and so on
43. Light show music card point marks can be directly exported, or AU and other professional music software can be marked and directly imported to the console for use
44. Support visual touch cutting operation of Cutting Light
45. Rated voltage AC: 100-240V,
46. Product size: 470*560*200mm
47. Product weight: 8.8KG
