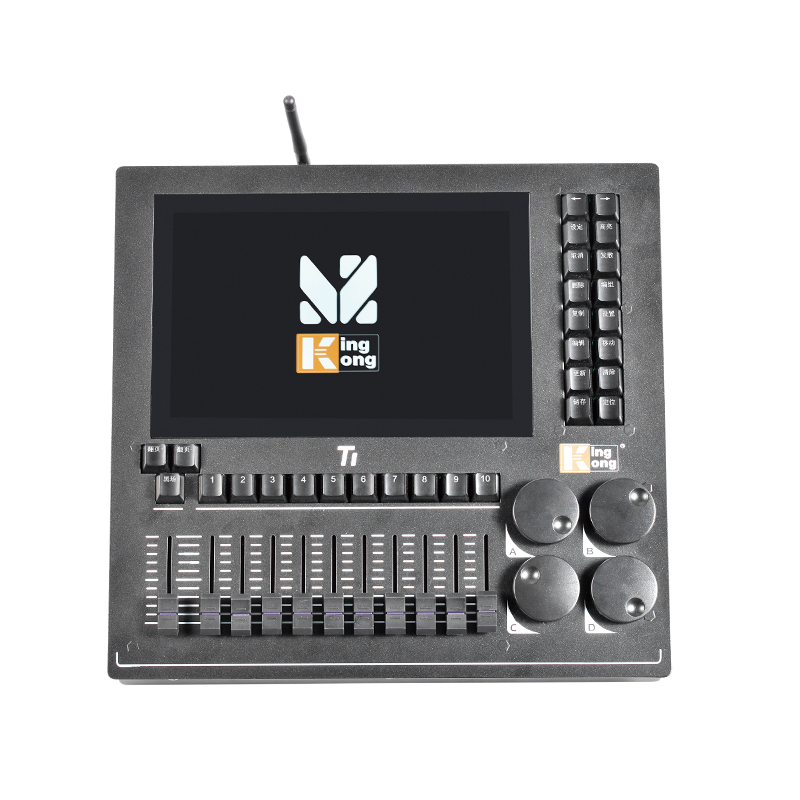

1. The console is small and convenient, with a classic 1024 appearance, Perfect for beginners in lighting.

2. The operating system is based on the customized development of Linux Ubuntu desktop application, and the system is more stable and does not have viruses. It supports language switching such as Chinese, English, Portuguese, Vietnamese.Also can customized language.

3. The motherboard uses industrial-grade materials, integrated welding of memory /cpu/ hard disk and motherboard, with high stability

4. With 4G running memory, 4-core CPU processor, 10.1 "HD touch capacitive screen

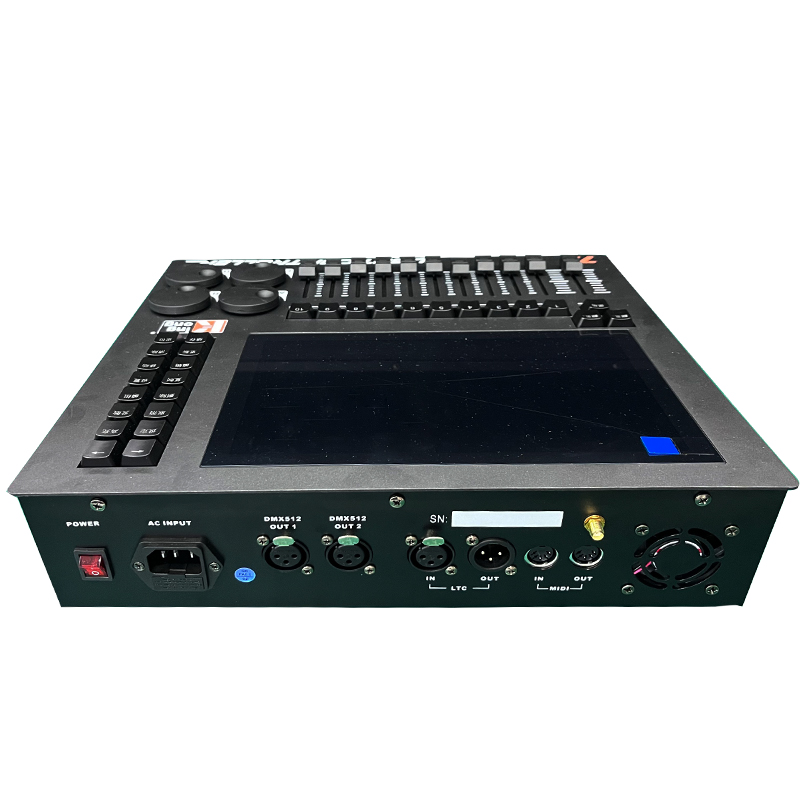

5.With two DMX512 photoelectric isolation output, the implementation of DMX512/1990 standard, physical fixed output 1024 DMX512 control channels.It can be extended to 8 output outlets using ART-NET, a total of 4096 DMX512 channels.

6. All the fader rails on the console are smooth, stable, with damping, accurate data, no delay, no jump value

7. The hardware is all new and original.

8.With two USB ports, you can insert U disk to read or store console data

9.With four encoder dial wheel, adjustable lamp attributes

10.With one HD HDMI ports, support HD screen expansion

11.With one SD storage ports for storage expansion

12.With one 100 megabit network port, support TPC/IP protocol high-speed transmission, can be connected to various control systems, support UDP, TCP, 485 and other control code trigger control, support connection lighting simulator software real-time output, can also be used for practice and simulation programming

13. Equipped with WIFI receiver, can be used for WIFI connection

14. There are 10 scene fader, which can run 75 playback at the same time, and 1 blackout fader, which supports immediate blackout

15. Support dual console online control function.If one controller failure, the other controller can control without any delay.

16. Support wireless or wired control function, mobile phone or tablet software and wall panel remote control

17. The APP function can classify and sort the edited scenes and programs, and display them directly on the mobile phone according to the control process, which is easy to use on the spot

18. Can set screen password and boot password which can protect console data well

19. Support RDM remote identification fixtures or change the address code function

20. Vector bitmap function, simulate the field layout emission, promote the control of lamps more accurate and convenient

21.Palettes can be classified, which can easily improve efficiency

22. Shape grouping with more programming effects, can import and export project files

23. With 6 fan modes, the fan effect can be modified through the Tips dialog box

24. Special dialog box, you can quickly call the color through the color board

25. Paragraph operation method, can be used for attributes, time, graphics, etc., at will

26. Fixture groups, palettes, scenes, etc., can be customized named or graffiti, easy to find and call

27. One-click light show, built-in music player, easy to edit show and performance rehearsal records

28. Using the XML format light library.The light library editor is simple to operate, and can be written directly on the console or written on the computer and copied into the console

29. Can store 900 scenes, including multi-step scenes unlimited number of steps

30. The fixture group is divided into 3 categories, which can store 300 fixture groups and control 1600 fixtures

31. Palettes are divided into 10 categories, with a total storage capacity of 1,000 materials

32. Built-in 190 commonly used fixed shapes and 31 kinds of curve effects, which can be modified by parameters

33. Can store 200 programs, can edit the light show

34. Can load 60 shape effects at the same time, arbitrary combination

35. The lamp library can add segment sets and quickly select attribute features

36. After connecting the lamp, you can directly change the address code and line and change the position of the lamp key

37. Console all performance files, light library, music, graphics files can be backed up external U disk, in order to prevent file loss

38. Can customize the lamp picture of each lamp position, convenient and intuitive display of lamp information

39. Support timing to trigger the operation and stop of programs and scenes, support console customization startup and shutdown.

40. Automatically generate light show music waveform diagram function. It can mark the card points directly on the console according to the rhythm of the music waveform diagram. And the recorded light scene on the mark left and right adsorption.So that light show editing more convenient and efficient

41. Light show fill mode. After marking the light show music card points, use fill mode to quickly and automatically fill the edited scene directly between the marks. Greatly reduces the difficulty and time of light show editing

42. Cursor timeline function. It can display the music duration of the light show in detail, the running time of the light scene, the card point marking time point and so on. Realize the lighting scene accurate card point trigger and end, so that the light show sound and light synchronization is more accurate

43. The action bar of the lighting scene can be directly dragged to adjust the position and running time, and automatically adsorbed to the mark point and so on

44. Light show music card point marks can be directly exported, or AU and other professional music software can be marked and directly imported to the console for use

45. Support visual touch cutting operation of Cutting Light

46. Rated voltage AC: 100-240V,

47. Product size/weight: 330*350*85mm/3.8KG

48. Packing size/weight: 398*398*150/4.2KG
