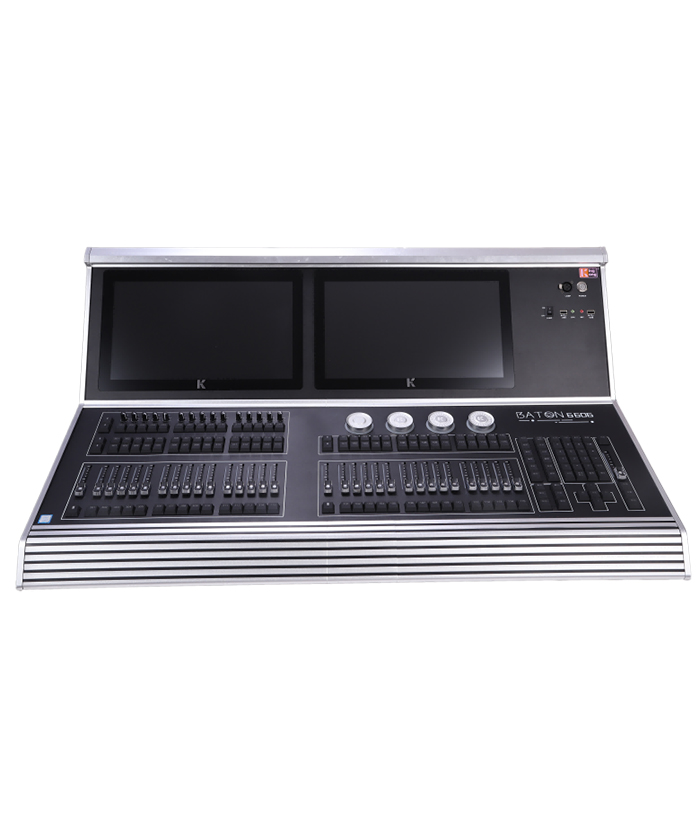

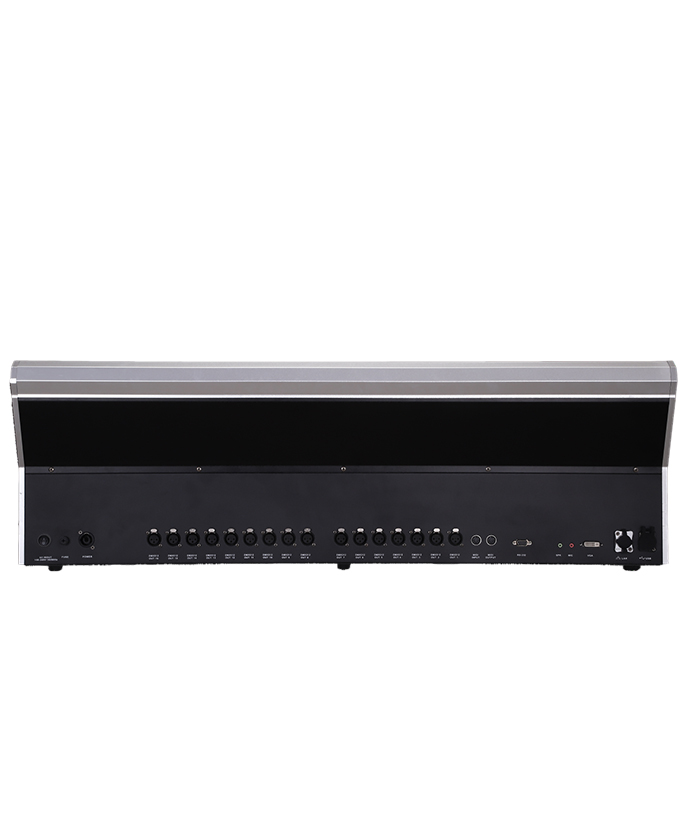

BATON-6606
BATON-66061. the operating system is customized and developed based on linux
2.≥I3 9th generation processor
3.≥16 DMX512 physical output ports, which can be extended to 32 DMX outputs
4.≥2 capacitive touch screens larger than 15.6 inches
5. Chinese and English operation interfaces can be switched freely, and multiple languages are built in.
6.≥6000 lamp keys and 600 lamp groups
7.≥3000 materials, which can be classified and stored
8.≥2700 scenes and 400 programs
9.≥30 replay pushers, which can run 65 replay scenes at the same time
10. push rod can be customized to set background light display
11.≥160 built-in commonly used fixed graphics, 40 kinds of curve effects, ≥60 graphic special effects
12.≥6 fan-shaped modes
13. the special dialog box quickly adjusts the color
14. Vector bitmap function to simulate site layout and discharge
15. Customize zoom and arrange function windows, and save the view
16.≥15 level knobs
17.≥3 USB3.0 interfaces
18.≥1 working light interface
19. bring your own LED strip lighting, and you can customize the color adjustment
20.≥2 audio input/output ports
21. Built-in UPS for power-off protection
22.≥1 master control push rod and 1 AB push rod
23. Built-in music player
24. Support graffiti handwriting or custom naming
25. support udp, rs232 and dmx512 to communicate with central control
26.≥1 MIDI time code input interface
27. support wired ART-Net and wireless ART-Net, which can be controlled by mobile phone or IPAD remotely
28. online field control of two control stations can be realized
29.≥4 attribute coding wheels
30. Control desk data protection, automatic file backup, custom setting of control desk password and use time
31. Virtual numeric keyboard supports multi-language switching
32. Support paragraph arithmetic
33. Pixel mapping
34. rated voltage: AC100V~240V,50/60Hz
